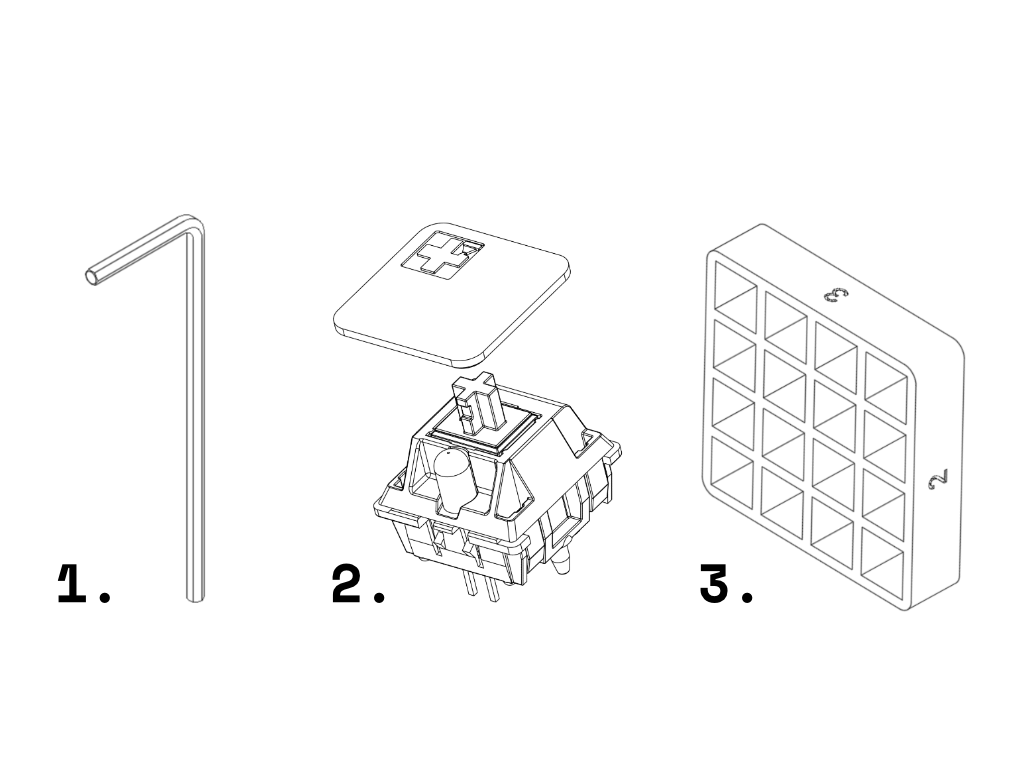

1. Necessary Items

2. Mounting the switch

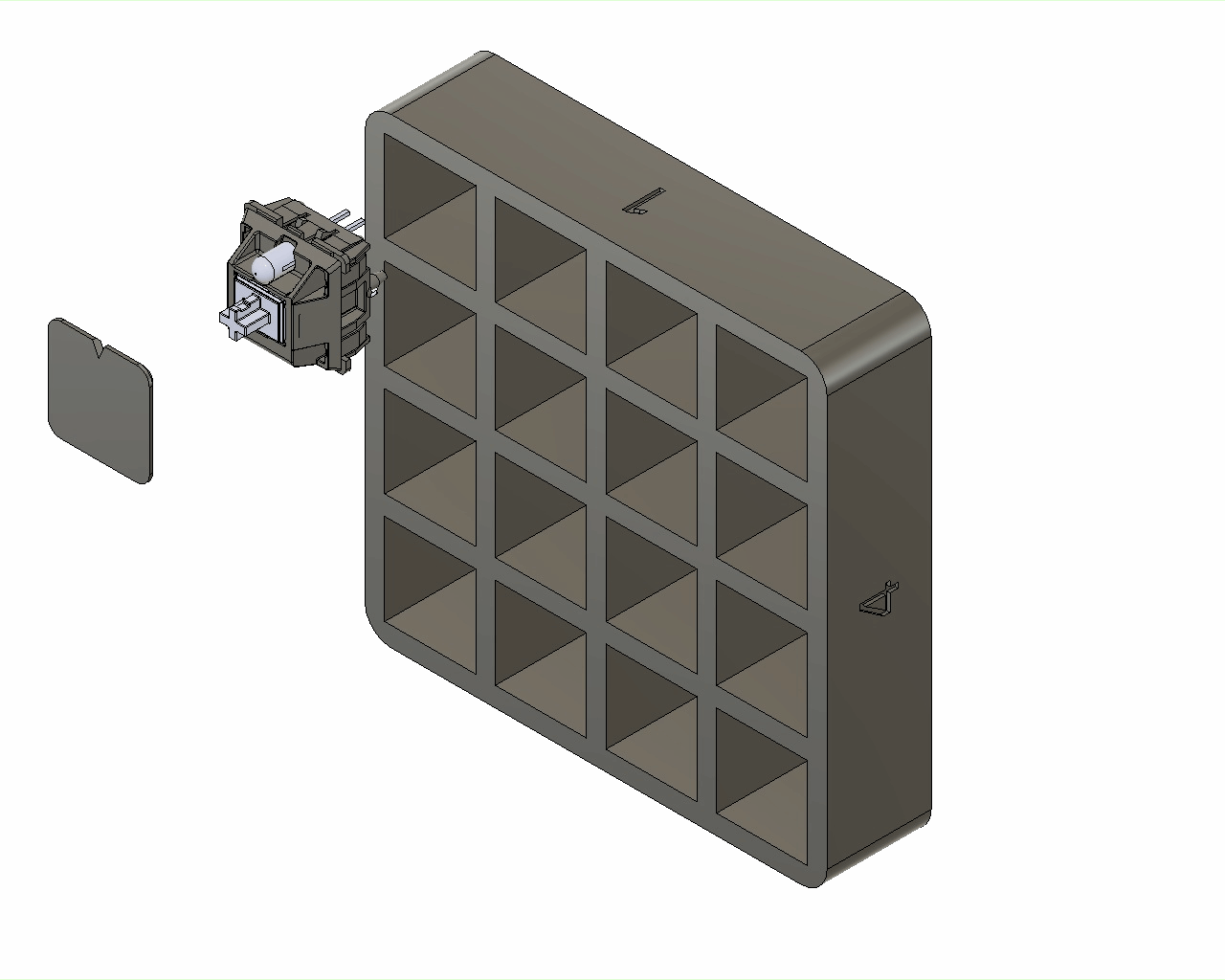

Mount the switch and [actuator keycap] onto the [switch bracket] as shown.

3. Inserting Switch Bracket Assemblies

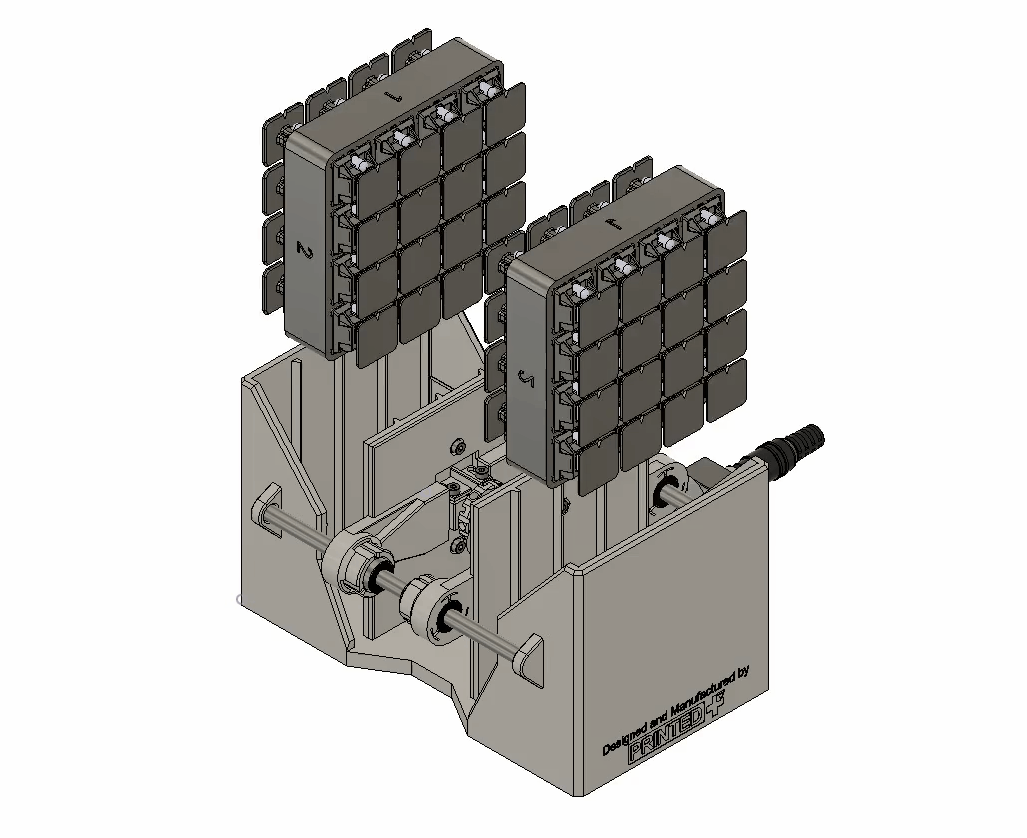

Insert [Switch Bracket] Assemblies on both sides of the motor as shown.

4. Adjusting Actuator Plungers

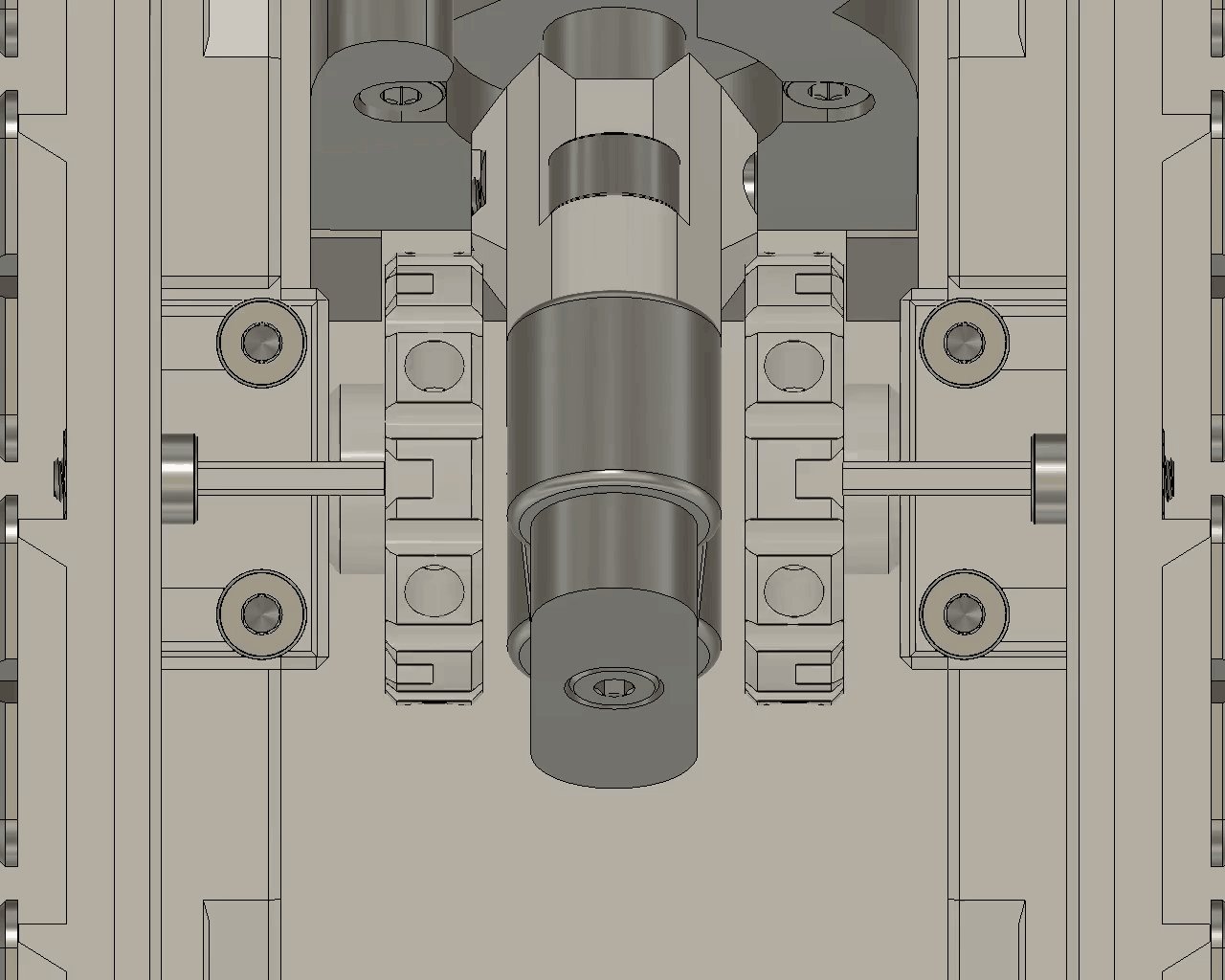

1. Adjust contact heads until actuator plungers can no longer move sideways as shown

4.25

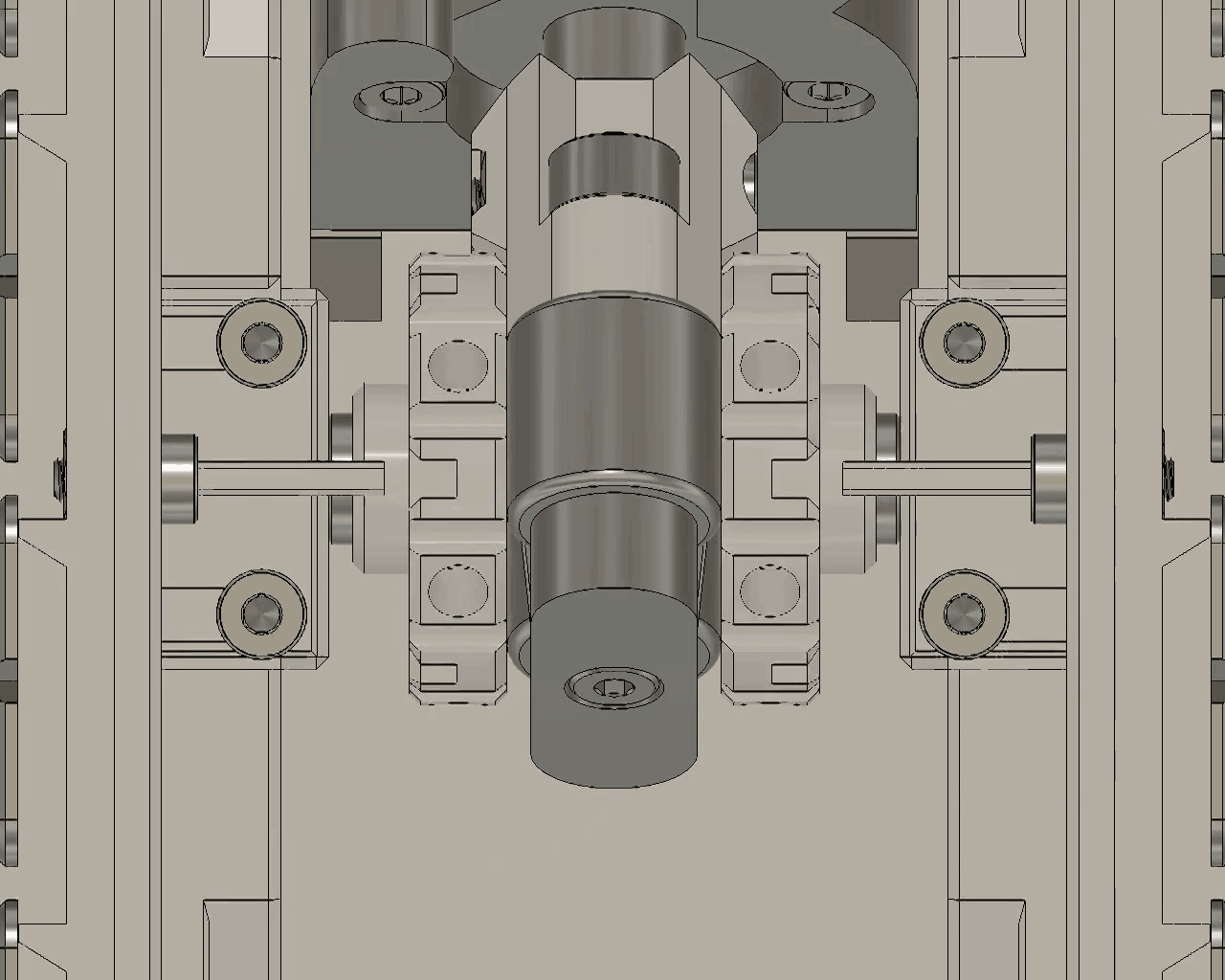

2. Loosen screws holding anchor in place as shown.

4.5

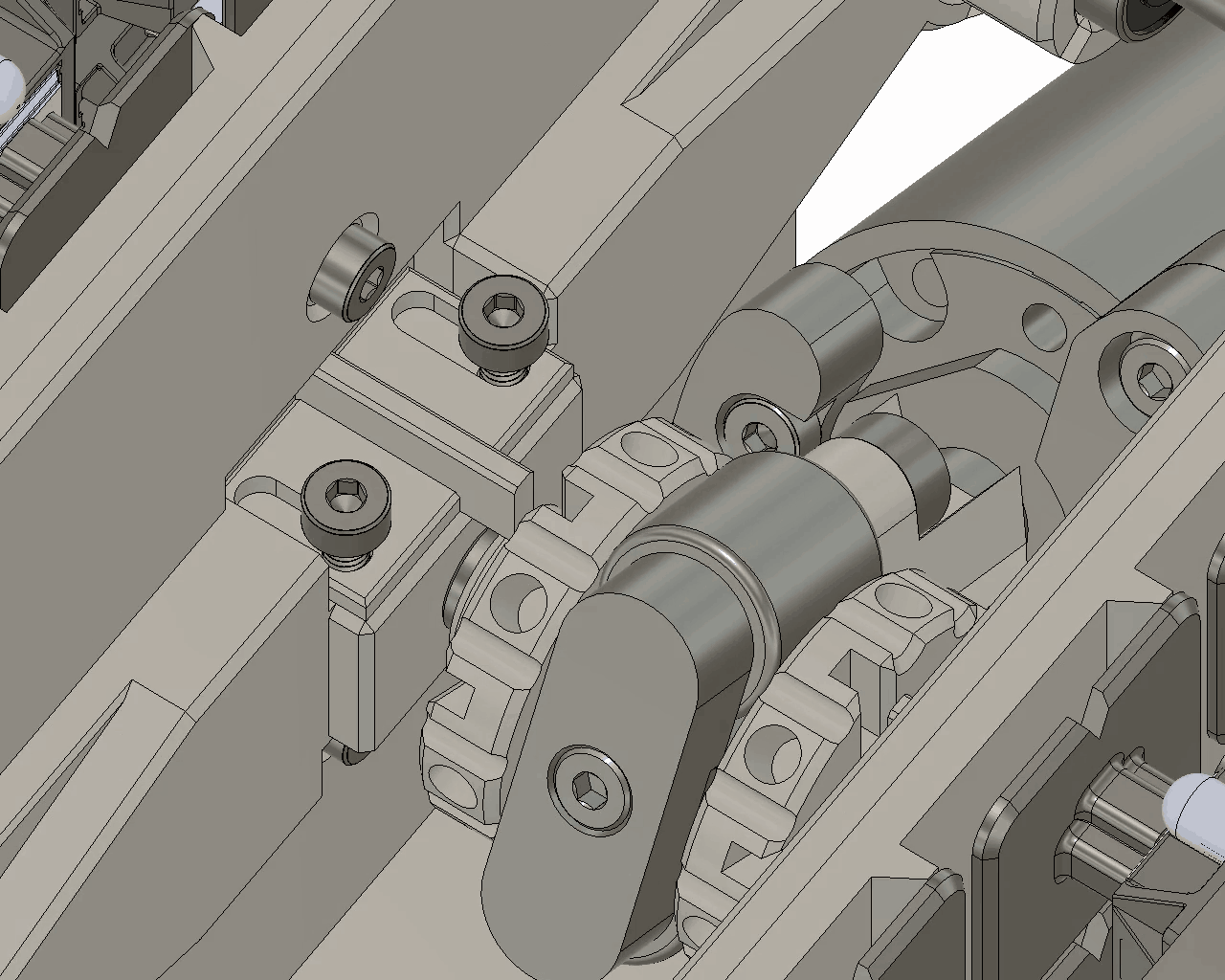

Move anchor into slot in contact head as shown.

(Failure to do so will result in the switches not being properly actuated)

4.75

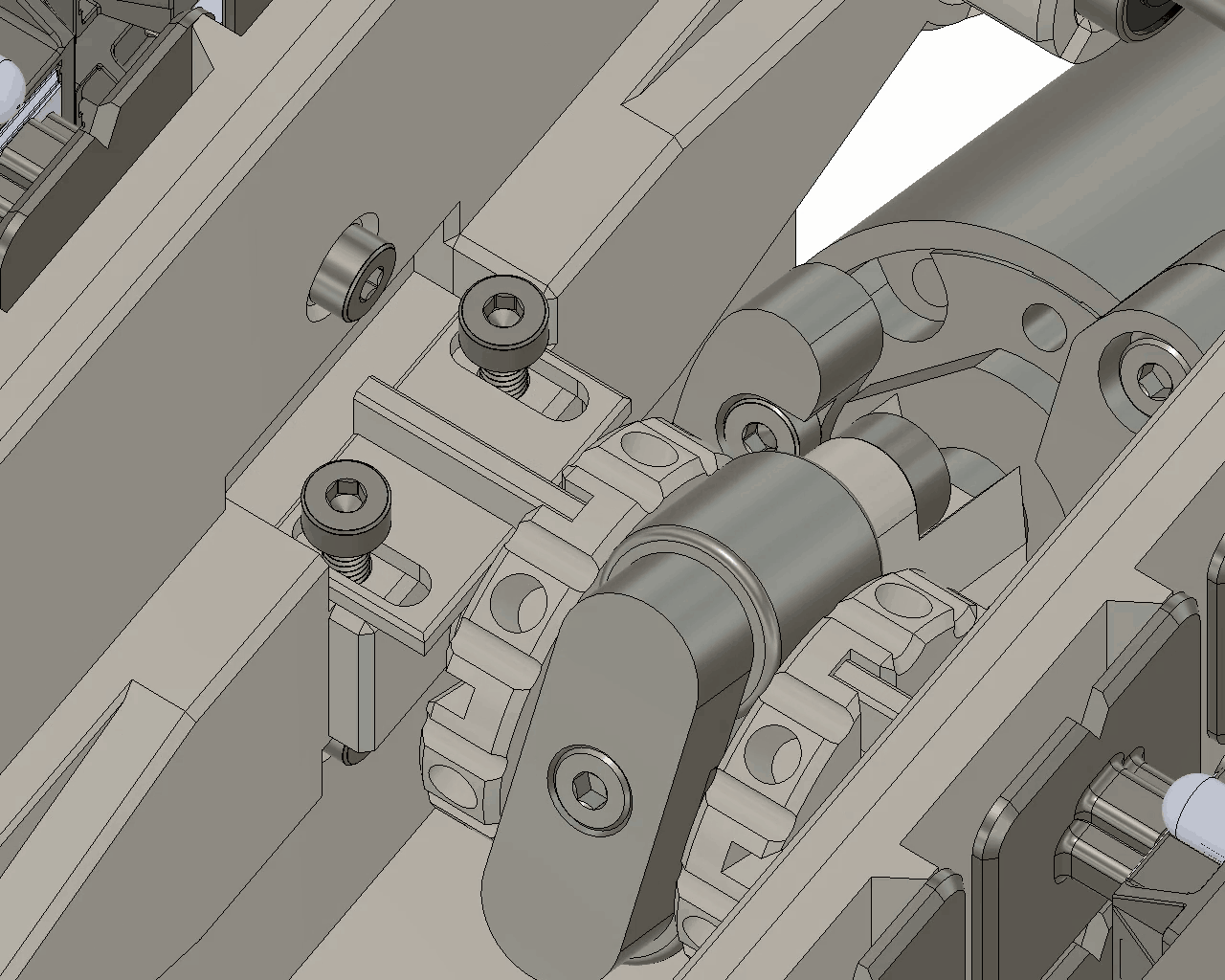

Tighten screws until anchor is unable to move back into it's resting position.

4.95

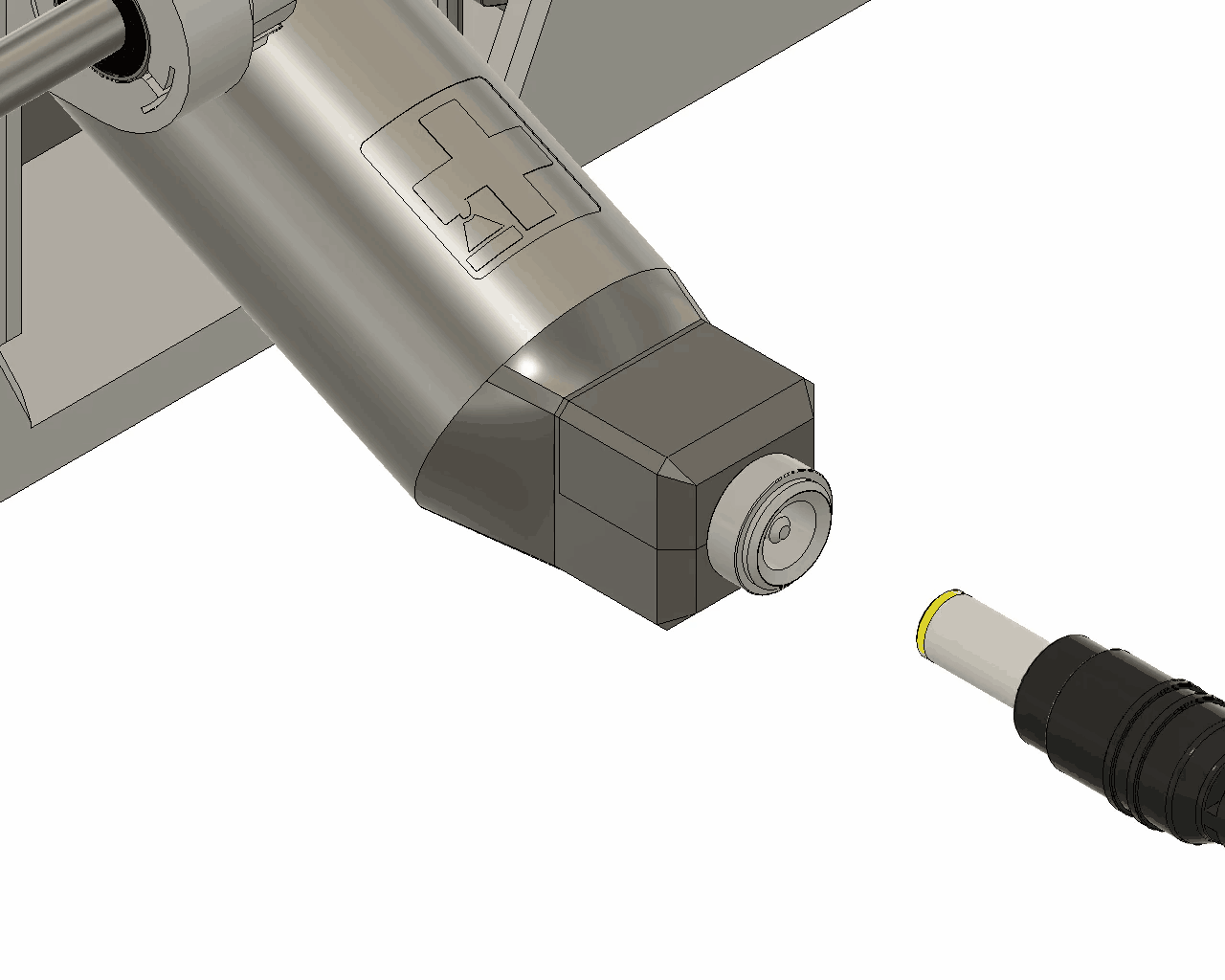

Plug male DC power end to female connector on the back of the motor as shown.

If you encounter any issues during your setup, please reach out to contact@printed-plus.com
